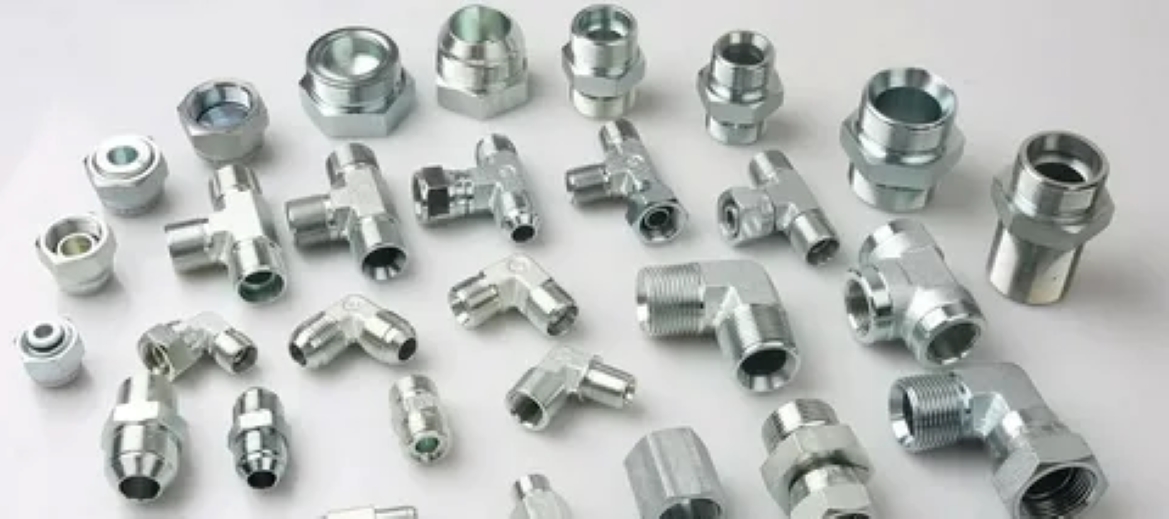

The tube fitting offers the advantage of easy installation, requiring significantly less effort than most other tube, pipe, or weld fitting options, which reduces installer fatigue. It can be installed using standard tools and offers multiple pre-swaging options for assembly flexibility, such as the gaugeable pre-swaging tool.
Tube adapters are designed to work with the tube fitting, allowing for connections between a tube fitting and various other end connection types. They can help eliminate difficult alignment issues and reduce the need to stock special elbows and tees. The installation procedure for tube adapters is similar to that of the tube fitting, making them easy to install.
Specification :
| Quenched & Tempered | ASTM A537 CL.1 & 2 |
|---|---|
| Boiler Quality | SA 516 Gr. 70 |
| International Standard of Stainless Steel Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 SS Strips EN 10088 SA -240-Strips |
| Finish | HR No.1, 2B, BA, Matt, Matt+1 side PVC, BA + 1side PVC, Chequered |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Coils, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Grades :
| Material Type | Grades |
|---|---|
| Mild Steel | ASTM A36, ASTM A283, IS 2062, EN 10025-2 |
| Carbon Steel | ASTM A516, ASTM A537, ASTM A285, ASTM A612, EN 10028-2 |
| High-Strength Low-Alloy (HSLA) Steel | ASTM A572, ASTM A588, ASTM A709, EN 10025-6 |
| Abrasion-Resistant Steel | HARDOX 400, HARDOX 450, HARDOX 500, Abrex 400, Abrex 450, SAIL HARD 400, SAIL HARD 450 |
| Boiler Quality Steel | ASTM A515, ASTM A516, ASTM A387, ASTM A537, EN 10028-2 |
| Pressure Vessel Steel | ASTM A285, ASTM A299, ASTM A455, ASTM A612, EN 10028-3 |
| Structural Steel | ASTM A572, ASTM A588, ASTM A992, EN 10025-2, EN 10025-3 |
| Stainless Steel | Stainless Steel 304, Stainless Steel 316, Stainless Steel 310, Stainless Steel 321 |
| Duplex Stainless Steel | Duplex Stainless Steel 2205, Duplex Stainless Steel 2507 |
| Alloy Steel | ASTM A387, ASTM A588, ASTM A606, ASTM A709, EN 10028-2 |
| Tool Steel | AISI D2, AISI O1, AISI A2, AISI S7, H13 |
| Aluminum | 5052, 5083, 6061, 7075 |
Tube Fittings
Precision-engineered tube fittings designed for secure, leak-tight connections across high-pressure and critical applications.

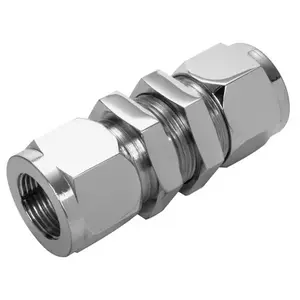

Bulkheads
Designed to provide a secure, leak-proof transition through panels or enclosures. Available in various configurations to accommodate different wall thicknesses.

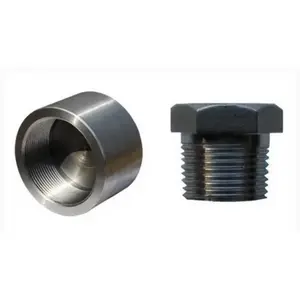

Caps and Plugs
Used to cap the ends of tubing or plug open ports in fittings securely, preventing system contamination and protecting threads during maintenance.
Female Connectors
Allows for the transition from a male threaded pipe connection to a fractional or metric tube, ensuring a reliable seal in instrumentation lines.
Fusible Tube Adapters
Safety devices equipped with a eutectic alloy that melts at a predetermined temperature to release system pressure in the event of a fire.

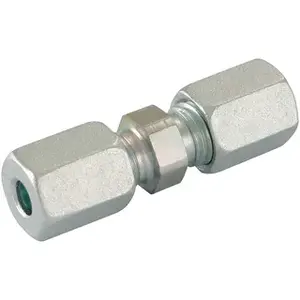

Low Dead Volume Unions
Specifically engineered with a minimized internal cavity to prevent fluid entrapment, ideal for chromatography, sampling systems, and analytical setups.

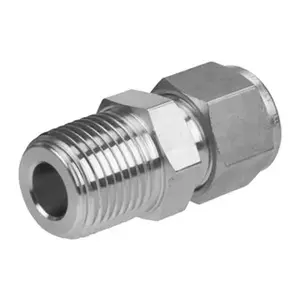

Male Connectors
Used to connect tubing directly to female threaded ports. Features high-quality precision threads for maximum thread engagement and leak-free performance.

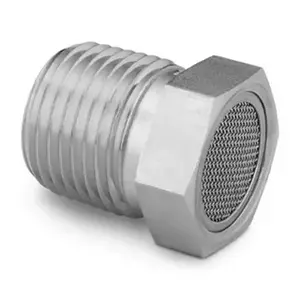

Mud Daubers (Vent Protectors)
Protects open ends of instruments, tubing, and vents from insects, dirt, and debris without restricting the flow of air or system exhaust.

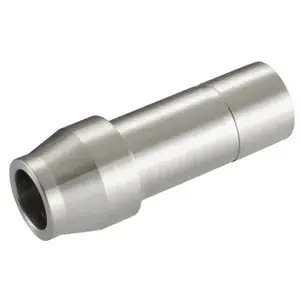

Port Connectors
Allows for close-coupled connections between two tube fitting ports without the need for an intermediate piece of tubing, reducing space and potential leak points.

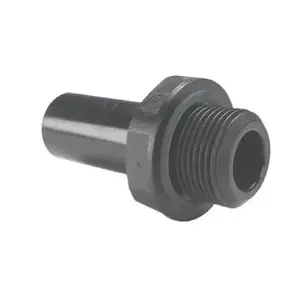

Reducers
Facilitates the connection of smaller tubing to larger tube fittings. Designed for easy installation with a single nut and ferrule mechanism on the machined end.

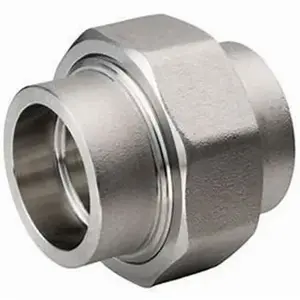

Socket Weld Fittings
Designed for permanent, welded systems. The tube is inserted into the recessed area of the fitting before welding, ensuring proper alignment and high structural integrity.

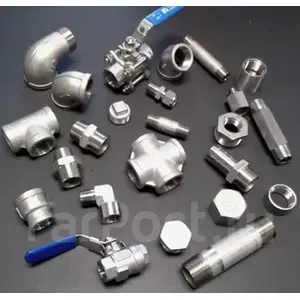

Spare Parts and Accessories
A complete line of replacement components to support your fitting inventory, including front ferrules, back ferrules, nuts, and preswaging tools for secure installations.

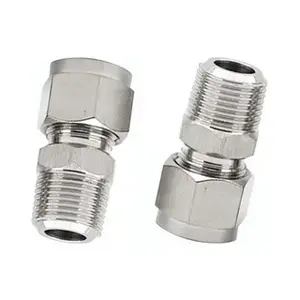

Tube Adapters
Resolves alignment problems in complex layouts by allowing a threaded pipe component to be easily adapted to a standard tube fitting port.

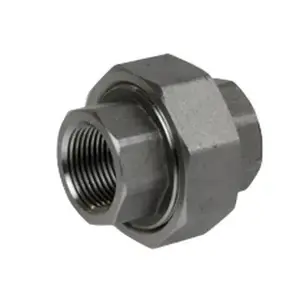

Unions
Straight, elbow, tee, and cross configurations designed to connect two or more pieces of tubing of the same size securely, providing a vibration-resistant seal.

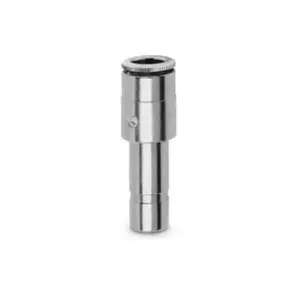

Zero Volume Reducers
Specialized reducing fittings manufactured with precision internal geometries to eliminate dead space completely, essential for highly sensitive analytical sampling.
