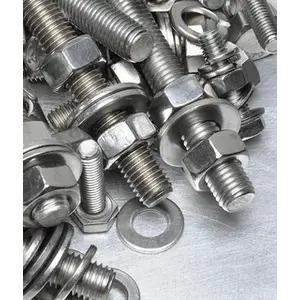

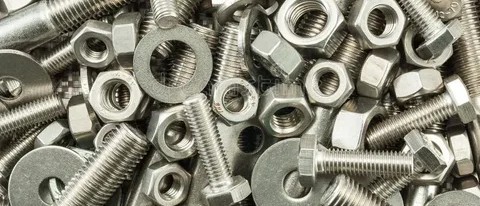

We are offering a premium range of Stainless Steel Fasteners. These Fasteners are made from very high quality raw material which ensures hassle free work performance at its user end. The provided pipes are well known for being in-line with internationally laid quality parameters as they are constructed from world class raw material. We let our range of products to go through a quality test before procurement so that their quality may be properly checked.
| Fasteners Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 - M56 | 3/6" to 2" |
Custom
Sizes Nuts Size : M3 - M56 | 3/6" to 2" | Custom Sizes Washers Size : M3 - M56 | 3/6" to 2" | Custom Sizes Machine Screws Size : M1.6 - M12 Self Tapping Screw Size : No.2 - No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN
933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Form of Fasteners | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of SS Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold forging , for custom-made connecting element machining and CNC |
| Head drive of Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of Fasteners | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | PTFE Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc
Plated
(BZP), Hot Dip Galvanised (HDG), Stainless Steel,
Sherardized,
some special one like DACROMET Geometry and Mechanically
Applied
coating ,Dacroment, nickel plated, anodizing, plated
zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
ANSI and/or ASME Standards Fasteners(inch series)
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Industrial Fasteners
High-tensile, corrosion-resistant fastening solutions designed for critical piping joints, structural assemblies, and heavy machinery applications.

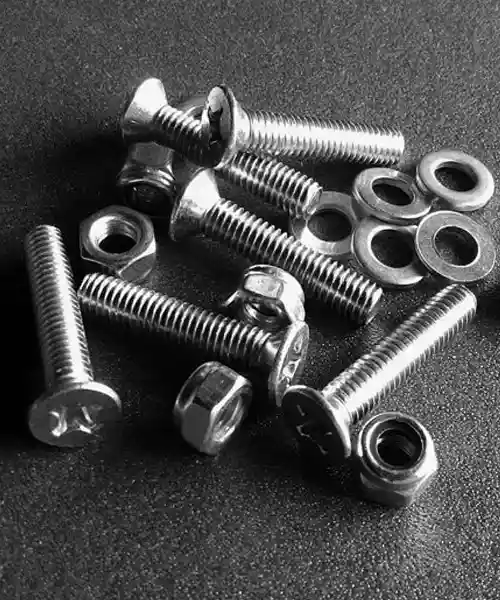

Stud Bolts
Fully threaded rods typically supplied with two heavy hex nuts. They are the industry standard for securing flange connections in high-pressure and high-temperature piping systems.

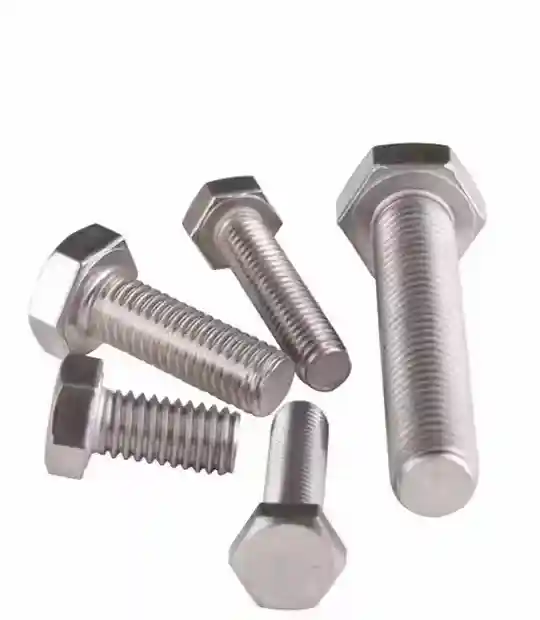

Hex Bolts
Standard hexagonal head bolts designed for use with a spanner or socket. Available in both fully threaded and partially threaded configurations for general structural and mechanical fastening.

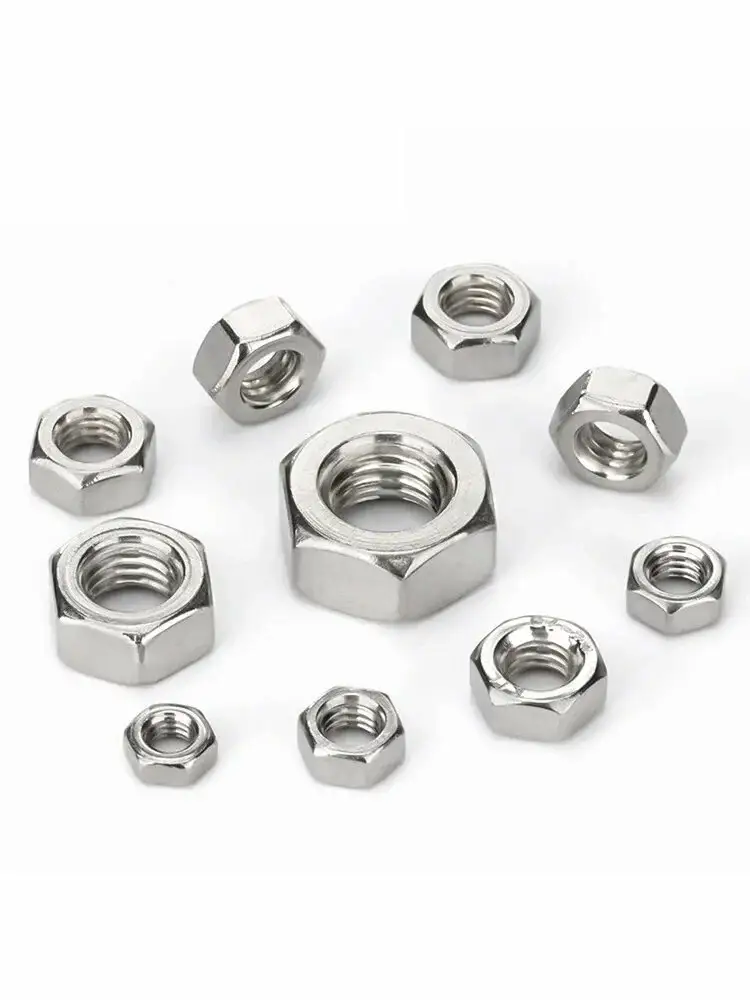

Hex Nuts & Heavy Hex Nuts
Internally threaded mating components for bolts and studs. Heavy hex nuts are slightly larger and thicker than standard hex nuts, providing increased strength for high-pressure flange connections.

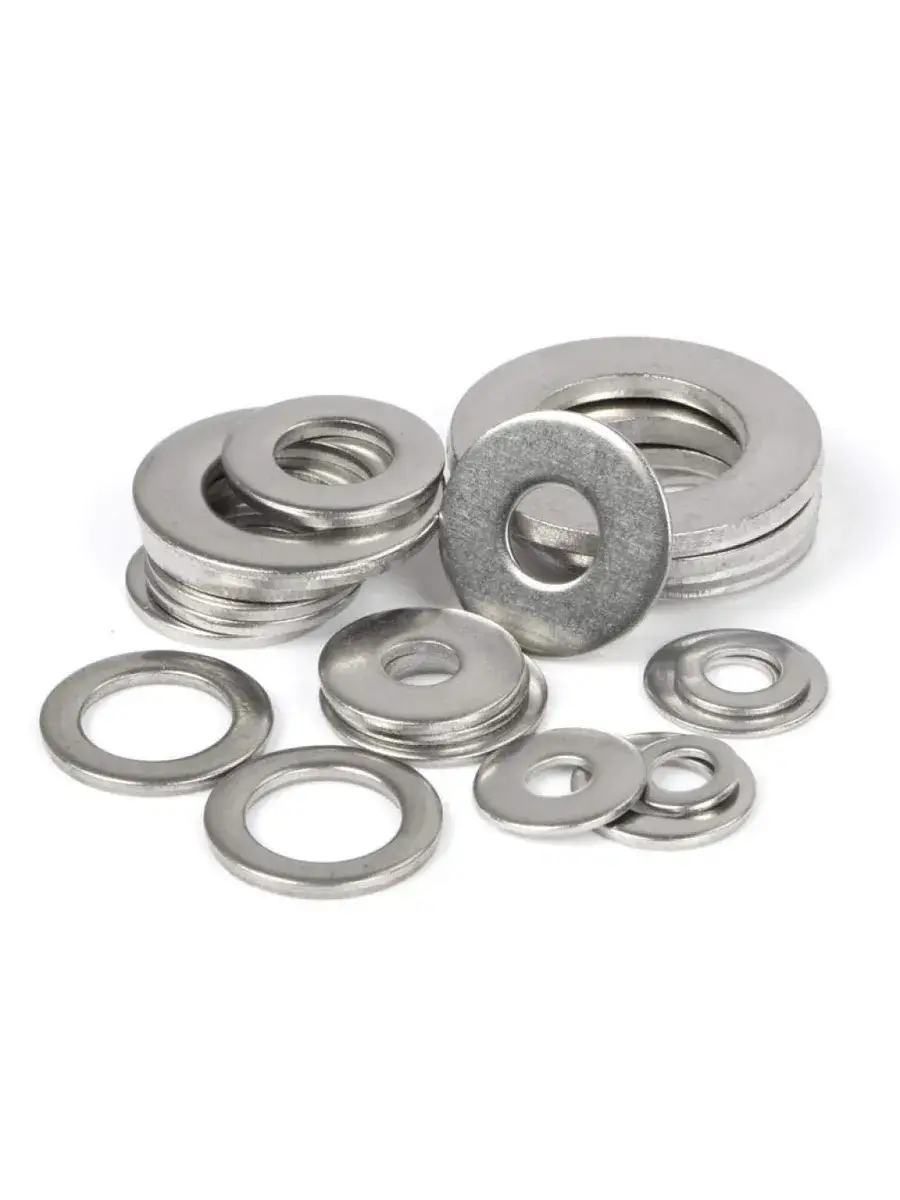

Washers
Used to distribute the load of a threaded fastener and prevent damage to the surface being fixed. Options include flat, spring, and machined washers depending on vibration and load requirements.
Threaded Rods
Long, continuous rods threaded along their entire length. Frequently used in hanging ceiling structures, HVAC installations, and when custom-length fastening is required on-site.

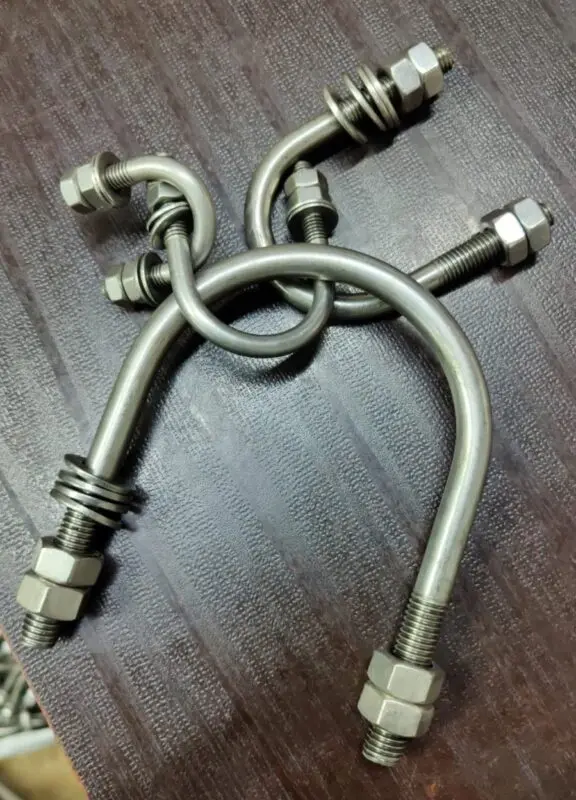

U-Bolts
U-shaped bolts featuring threads on both ends. Primarily used for supporting pipework, fixing conduits, or attaching round structural elements to flat surfaces.

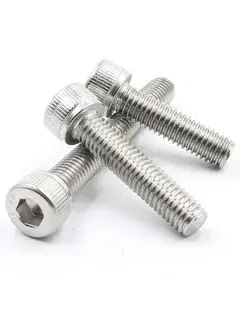

Socket Head Cap Screws
Fasteners featuring a cylindrical head with an internal hexagonal drive (Allen socket). Ideal for applications with limited space where a traditional wrench cannot be used.

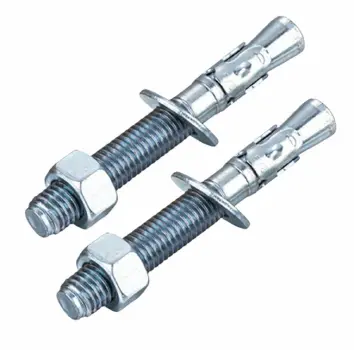

Anchor Bolts / Foundation Bolts
Heavy-duty bolts designed to attach structural steel elements, machinery, and equipment securely to concrete foundations.
