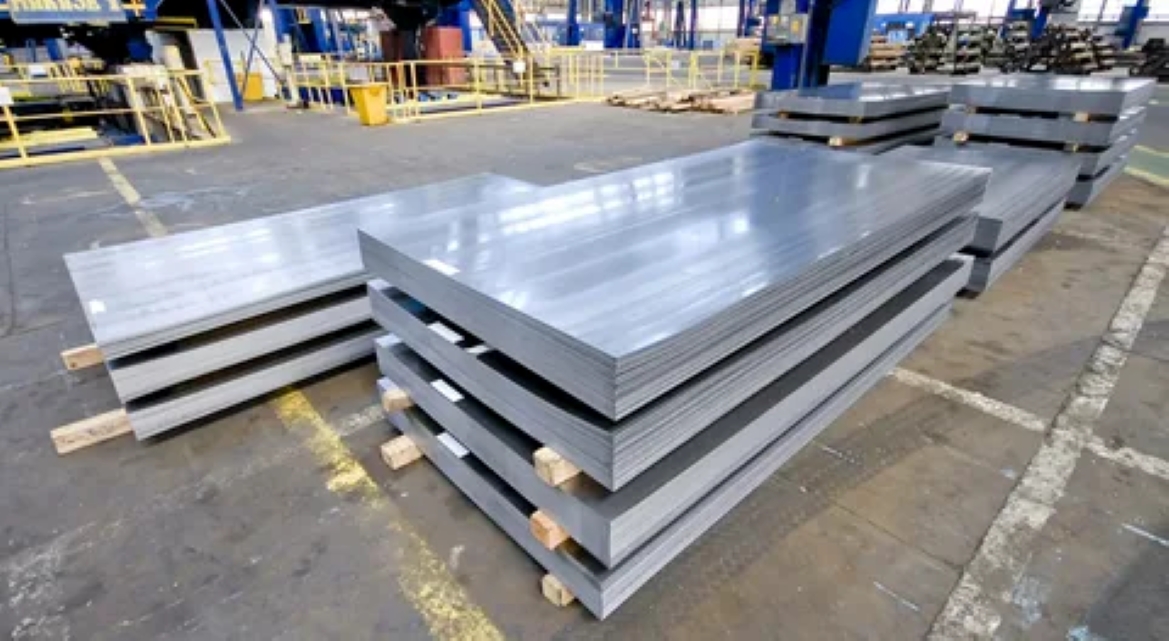

SHEETS & PLATES
We offer wide variety of industrial steel sheets, industrial steel plates, industrial stainless steel sheets, industrial stainless steel plates, which are fabricated from finest quality of raw materials. Manufactured as per the international quality and safety standards, we offer these products in different dimensions and at highly competitive prices. These products are mostly applied in construction and engineering industry. User Industries: Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.
Sheets & Plates Specification
| Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Sheets & Plates Size Range | Cold rolled ASME SA240 Grade Stainless Steel Sheet 0.5-6.4
mm Hot rolled ASME SA240 Grade Stainless Steel Sheet 3.0–10.0 mm |
| Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 SS Strips EN 10088 SA -240-Strips |
| Finish of Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Finishes Of Sheets & Plates
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
|
Stainless Steel
|
ASTM A240, TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 446, 904L, 202 |
|---|---|
|
Titanum
|
ASTM B265 Gr. - 1, 2, 3, 5 (6AL - 4V), 7,9,11,12,23 (6AL - 4V ELI) |
|
High Nickel Alloys
|
Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel |
|
Duplex
|
ASTM A815 / UNS S31803 & S32205 (2205) |
|
Super Duplex
|
ASTM A815 / UNS S32750 (2507) & S32760. |
|
Other
|
CRCA, Spring Steel, Silver Steel & Hardox |
|
Finish
|
2B, 2D, HRAP, CR, BA (MATT NO 4 & NO 8), Plastic Coated |
|
Hardness
|
Soft, Hard, Half Hard, Quarter Hard, Spring Hard. |
Sheets, Plates & Coils
High-performance flat-rolled products manufactured to exacting tolerances. Available in a wide variety of materials, grades, and finishes to support diverse industrial and architectural applications.

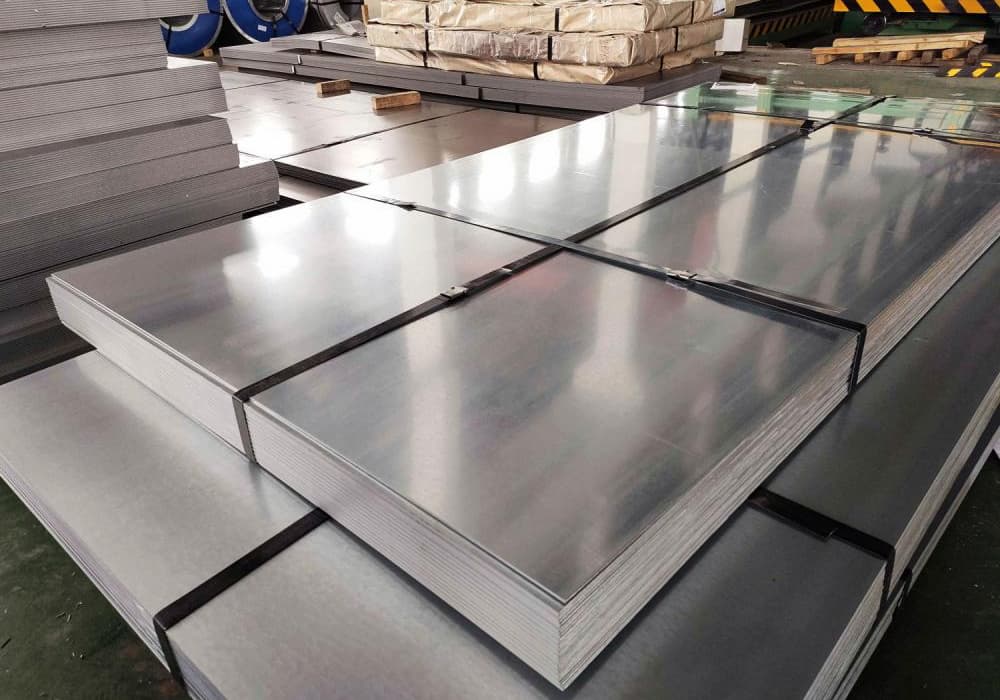

Sheets
Flat-rolled metal products engineered for precision fabrication, architectural aesthetics, and lighter structural use. Available in cold-rolled (CR) and hot-rolled (HR) varieties with multiple surface finish options.

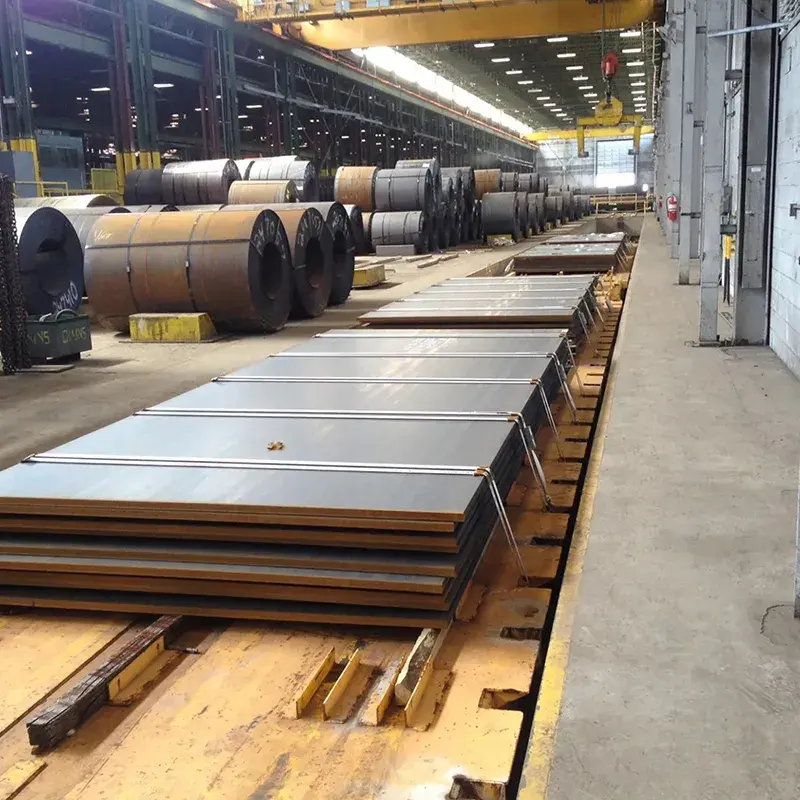

Plates
Heavy-duty, thick metal plates designed for high-stress applications, pressure vessels, shipbuilding, offshore structures, and heavy machinery fabrication where supreme structural integrity is required.

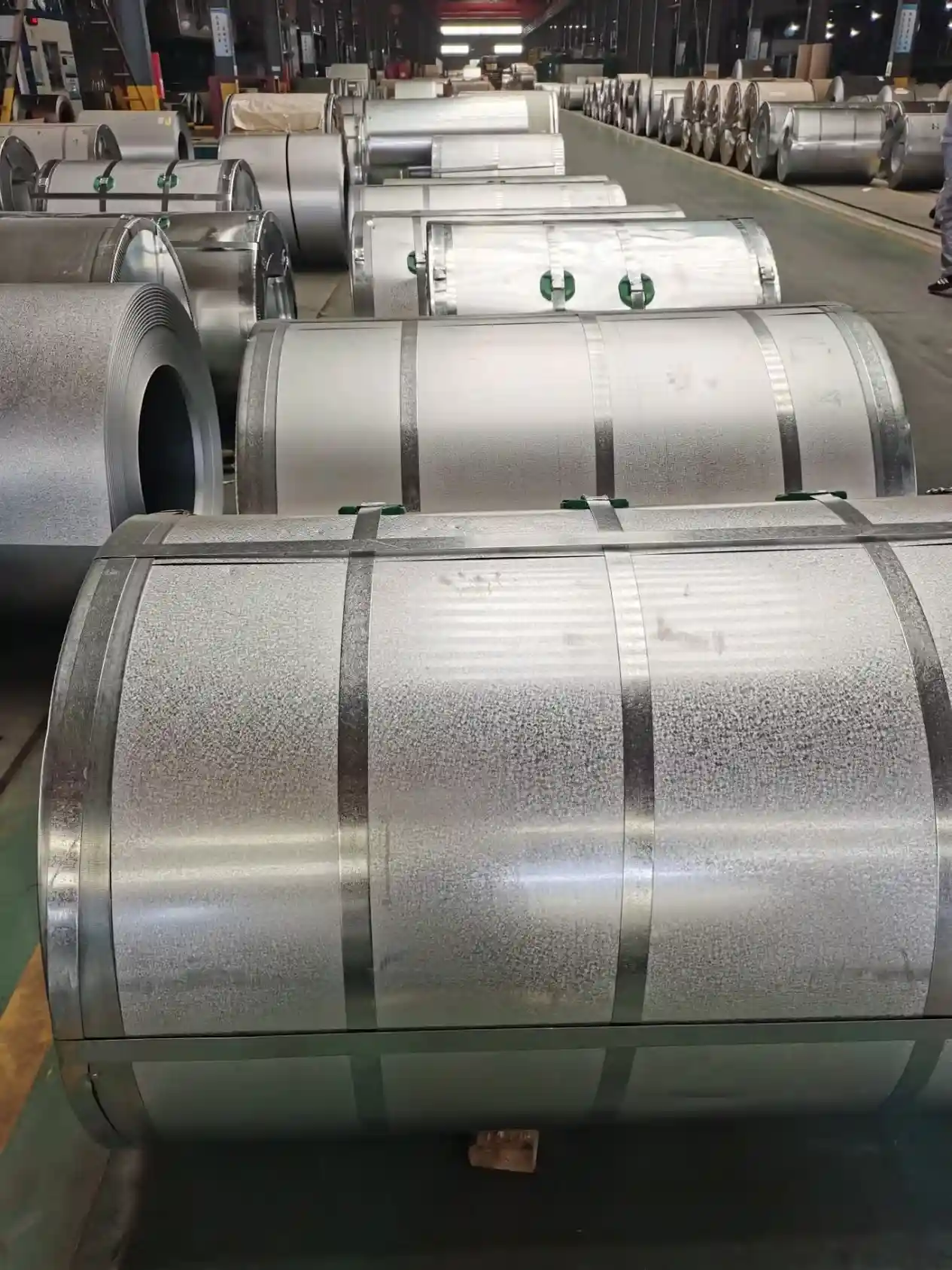

Coils
Continuous lengths of flat-rolled metal tightly wound into rolls. Coils offer high manufacturing flexibility and minimize material waste when stamped, rolled, slit into strips, or cut to custom lengths.
