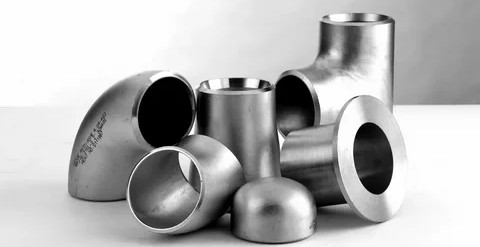

Pipe Fittings


Sativa International's pipe fittings are available in a variety of sizes, materials and configurations. Our range includes pipe connectors and pipe and port adapters that are also available in a wide array of thread types. They are designed to provide leak-free connections and are suitable for use across a variety of applications that support many of today's major industrial markets.

Pipe Fittings are a Piping component that helps in changing the direction of the flow, such as elbows and tees. Changes the size of the pipe, such as reducers, and reducing tees. Connect different components such as couplings and stop the flows such as Caps.



Pipe Fittings Specification


Pipe Fittings Specifications ASTM A403/ ASME SA403
Pipe Fittings size Seamless Butt Weld Fittings : 1/2" - 10"
Welded Butt Weld Fittings : 1/2" - 48"
Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Buttweld Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Buttweld Pipe FittingsType DN15-DN1200
ASTM A403 SS Buttweld Fitting Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP Buttweld Fitting
ASTM A403 SS Buttweld Fittings Manufacturing process Push, Press, Forge, Cast, etc.
Buttweld Pipe Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
SA 403 Pipe Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Manufacturing Standards of Stainless Steel Buttweld Fittings


ASME B16.9 ASTM A403 Pipe Fittings Factory-Made Wrought Buttwelding Fittings Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28 Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
Mss SP75 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers

Stainless Steel

ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L
Titanum

ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL -4V ELI)
High Nickel Alloys

ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel
Duplex

ASTM A182 / UNS S31803 & S32205 (2205)
Super Duplex

ASTM A182 / UNS S32750 (2507) & S32760.

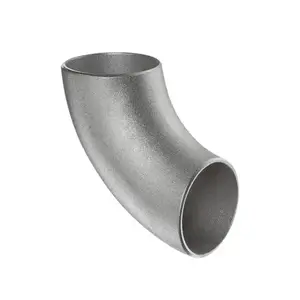

ELBOW


Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered

Stainless Steel
ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.

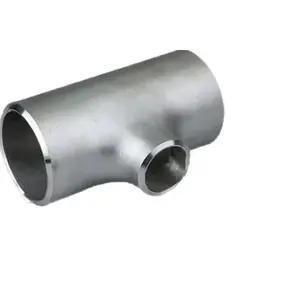

REDUCING TEE


Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered

Stainless Steel
ASTM A 182, A 240
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.

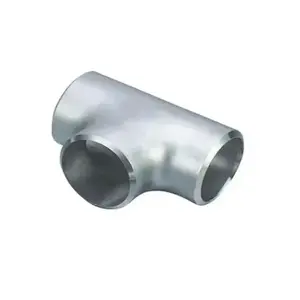

EQUAL TEE


An equal tee is a T-shaped device with three openings that act as outlets for the pipe. All three ends of the equal tee are the same size. We can provide equal tees in different metals, such as monel, nickel, Inconel, Hastelloy, copper, brass, carbon steel, stainless steel and titanium. Custom equal tees can be developed to meet the specific application requirements of clients.

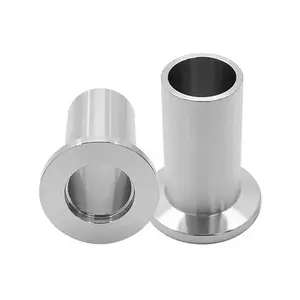

LONG & SHORT STUB END

Size
1/8″NB to 48″NB IN
Schedule
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type
Seamless / ERW / welded / fabricated
Form
Long stub end & short stub end

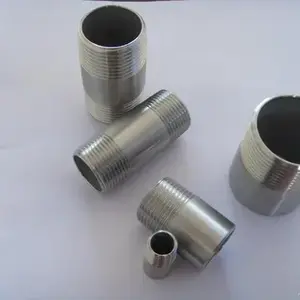

SWAGE NIPPLE & BARREL NIPPLE

We provide Swage Nipples and Barrel Nipples that are specially designed to withstand high temperatures and pressure. These can be used for permanent welded connections or detachable thread connections. Our range is available in various specifications to meet the specific requirements of the applications.

Features

Durable
Corrosion resistance
High tensile strength
Temperature resistance
Superior finish

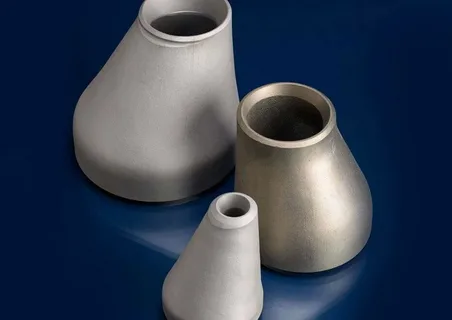

CONCENTRIC & ECCENTRIC REDUCERS

We are offering our clients with concentric / eccentric reducers that are used in petrochemical, power, nuclear and electronic industries. Known for their close tolerances, these stainless steel concentric and eccentric reducers are designed with precise configurations. These reducers are ideal for critical applications that involve high pressure, impulse, vibration and temperature.
